Lattice Geometries in TensorCircuit¶

Quick Start Guide¶

📋 Available Lattice Types:

Class

Description

Use Cases

SquareLattice

2D square grid with optional PBC

Spin models, quantum dots

ChainLattice

1D linear chain

Time evolution, MPS algorithms

HoneycombLattice

2D hexagonal structure

Graphene, topological materials

CustomizeLattice

Arbitrary finite geometry

Molecular clusters, defects, irregular structures

âš¡ Key Methods:

  • .get_site_info(index) → Site details (index, identifier, coordinates)

  • .get_neighbors(site, k=1) → k-th nearest neighbors of a site

  • .get_neighbor_pairs(k=1) → All unique k-th nearest neighbor pairs

  • .show() → Interactive visualization with matplotlib

This tutorial introduces the unified and extensible Lattice API in TensorCircuit, a powerful framework for defining and working with quantum systems on various geometric structures.

Setup¶

Environment Requirements:

  • TensorCircuit >= 1.3.0

  • Optional: JAX backend for automatic differentiation support

  • Python packages: numpy, matplotlib, optax (for optimization demos)

What You’ll Learn¶

By the end of this tutorial, you’ll be able to:

🔹 Build common lattices (square, chain, honeycomb) and custom geometries
🔹 Query sites and neighbors with configurable interaction ranges
🔹 Visualize lattices with bonds and site indices
🔹 Generate physics Hamiltonians (Heisenberg, Rydberg) directly from geometry
🔹 Create gate layers for efficient parallel two-qubit operations
🔹 Explore differentiable geometry for variational optimization

Architecture Overview¶

The API is centered around the ``AbstractLattice`` base class, with concrete implementations for:

  • Translationally invariant lattices: SquareLattice, HoneycombLattice, ChainLattice

  • Arbitrary custom geometries: CustomizeLattice for finite clusters and irregular structures

This unified approach provides consistent interfaces while supporting both regular periodic structures and completely custom finite geometries.

[42]:

# Essential imports for the lattice tutorial
import numpy as np
import matplotlib.pyplot as plt
import tensorcircuit as tc

# Import all lattice classes and utility functions
from tensorcircuit.templates.lattice import (
    AbstractLattice,
    SquareLattice,
    HoneycombLattice,
    ChainLattice,
    CustomizeLattice,
    get_compatible_layers,
)
from tensorcircuit.templates.hamiltonians import (
    heisenberg_hamiltonian,
    rydberg_hamiltonian,
)

# JAX backend is preferred for differentiable geometry optimization,
# but the API works with all TensorCircuit backends (numpy, jax, tensorflow, torch)
K = tc.set_backend("jax")
# Set precision to complex128 for better numerical accuracy
tc.set_dtype("complex128")
print("✅ Using JAX backend (supports automatic differentiation)")

K

✅ Using JAX backend (supports automatic differentiation)

[42]:

jax_backend

1. Square Lattice: Basic Operations¶

We’ll start by exploring a 3×3 square lattice with periodic boundary conditions (PBC). This demonstrates the core functionality: site information access, neighbor queries, and connectivity analysis.

Key concepts:

  • Site indexing: Sites are numbered in row-major order (0-8 for a 3×3 grid)

  • Identifiers: Each site has a tuple identifier (row, col, layer) for multi-dimensional lattices

  • Periodic boundaries: With pbc=True, edge sites connect to opposite edges

  • Neighbor shells: k=1 means nearest neighbors, k=2 next-nearest neighbors, etc.

[43]:

# Create a 3x3 square lattice with periodic boundary conditions and lattice constant 1.0
sq = SquareLattice(size=(3, 3), pbc=True, lattice_constant=1.0)

# Access basic lattice properties
print(f"num_sites: {sq.num_sites}")
print(f"dimensionality: {sq.dimensionality}")

# Get information about site 4 (center site in row-major ordering for 3x3)
idx, ident, coords = sq.get_site_info(4)
print("site 4 info ->", idx, ident, coords)

# Find nearest neighbors of site 4
nn = sq.get_neighbors(4, k=1)
print("nearest neighbors of site 4 ->", nn)

# Get all unique nearest-neighbor pairs
pairs = sq.get_neighbor_pairs(k=1, unique=True)
print("unique NN pairs (first 8) ->", pairs[:8], "...")

num_sites: 9
dimensionality: 2
site 4 info -> 4 (1, 1, 0) [1. 1.]
nearest neighbors of site 4 -> [1, 3, 5, 7]
unique NN pairs (first 8) -> [(0, 1), (0, 2), (0, 3), (0, 6), (1, 2), (1, 4), (1, 7), (2, 5)] ...

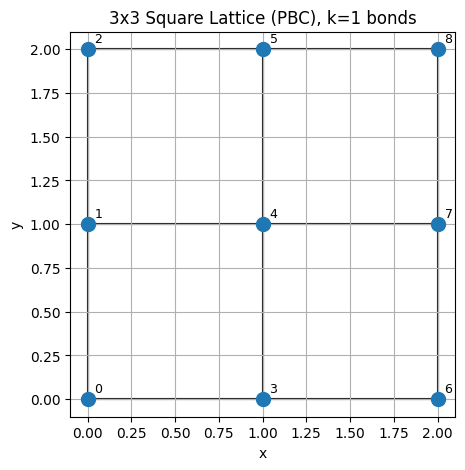

Visualize the square lattice and bonds¶

Use .show() to plot sites and optional bonds.

[44]:

# Draw square lattice on a provided Axes to avoid extra blank figures
fig, ax = plt.subplots(figsize=(5, 5))
sq.show(ax=ax, show_indices=True, show_bonds_k=1)
ax.set_title("3x3 Square Lattice (PBC), k=1 bonds")
ax.set_aspect("equal")
plt.show()
../_images/tutorials_lattice_6_0.png

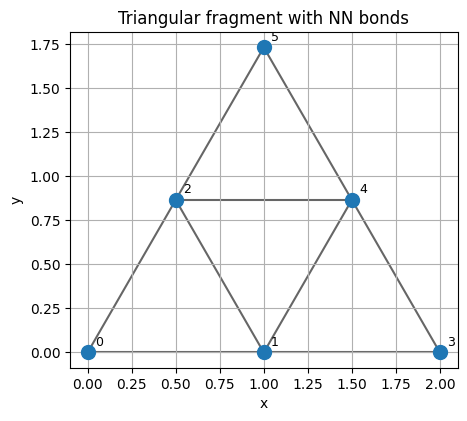

2. Custom geometry: triangular fragment¶

For irregular or finite clusters, use CustomizeLattice with explicit coordinates and identifiers.

[45]:

# Define a small triangular fragment
tri_coords = [
    [0.0, 0.0],
    [1.0, 0.0],
    [0.5, float(np.sqrt(3) / 2)],  # triangle 1
    [2.0, 0.0],
    [1.5, float(np.sqrt(3) / 2)],  # triangle 2
    [1.0, float(np.sqrt(3))],  # top site
]
tri_ids = list(range(len(tri_coords)))
tri = CustomizeLattice(dimensionality=2, identifiers=tri_ids, coordinates=tri_coords)
# Compute nearest neighbors on demand (k=1)
print("neighbors of site 2 ->", tri.get_neighbors(2, k=1))

# Draw triangular fragment on a provided Axes
fig, ax = plt.subplots(figsize=(5, 5))
tri.show(ax=ax, show_indices=True, show_bonds_k=1)
ax.set_title("Triangular fragment with NN bonds")
ax.set_aspect("equal")
plt.show()

neighbors of site 2 -> [0, 1, 4, 5]
../_images/tutorials_lattice_8_1.png

3. From geometry to Hamiltonians¶

We can build sparse physics Hamiltonians directly from lattice connectivity and coordinates.

3.1 Heisenberg model on a 2x2 square lattice¶

Nearest-neighbor Heisenberg: H = J Σ⟨i,j⟩ (X_i X_j + Y_i Y_j + Z_i Z_j).

[46]:

sq22 = SquareLattice(size=(2, 2), pbc=True)
Hh = heisenberg_hamiltonian(sq22, j_coupling=1.0, interaction_scope="neighbors")
print("Heisenberg(H) shape:", Hh.shape)
Hd = tc.backend.to_dense(Hh)
print("Hermitian check ->", np.allclose(Hd, Hd.conj().T))

Heisenberg(H) shape: (16, 16)
Hermitian check -> True

3.2 Rydberg atom array Hamiltonian¶

Includes on-site drive/detuning and distance-dependent interactions V_ij = C6/|r_i-r_j|^6.

[47]:

chain2 = ChainLattice(size=(2,), pbc=False, lattice_constant=1.5)
Hr = rydberg_hamiltonian(chain2, omega=1.0, delta=-0.5, c6=10.0)
print("Rydberg(H) shape:", Hr.shape)
tc.backend.to_dense(Hr)  # display

Rydberg(H) shape: (4, 4)

[47]:

Array([[-0.71947874+0.j,  0.5       +0.j,  0.5       +0.j,
         0.        +0.j],
       [ 0.5       +0.j, -0.21947874+0.j,  0.        +0.j,
         0.5       +0.j],
       [ 0.5       +0.j,  0.        +0.j, -0.21947874+0.j,
         0.5       +0.j],
       [ 0.        +0.j,  0.5       +0.j,  0.5       +0.j,
         1.15843621+0.j]], dtype=complex128)

4. Gate layering for NN two-qubit gates¶

To schedule parallel two-qubit gates on neighbors, group edges into disjoint layers.

[48]:

pairs = sq.get_neighbor_pairs(k=1, unique=True)
layers = get_compatible_layers(pairs)
print("Number of layers:", len(layers))
for li, layer in enumerate(layers):
    head = layer[:6]
    suffix = " ..." if len(layer) > 6 else ""
    print("Layer", li, ":", head, suffix)

Number of layers: 5
Layer 0 : [(0, 1), (2, 5), (3, 4), (6, 7)]
Layer 1 : [(0, 2), (1, 4), (3, 5), (6, 8)]
Layer 2 : [(0, 3), (1, 2), (4, 5), (7, 8)]
Layer 3 : [(0, 6), (1, 7), (2, 8)]
Layer 4 : [(3, 6), (4, 7), (5, 8)]

5. Differentiable geometry: optimize lattice constant (Lennard-Jones)¶

Below we demonstrate optimizing a geometric parameter (the lattice constant) using automatic differentiation. We use a Lennard-Jones potential over all pairs as a simple, geometry-driven objective.

[49]:

import optax


# Define a differentiable objective with log(a) parameterization to keep a>0
def lj_total_energy(log_a, epsilon=0.5, sigma=1.0, size=(4, 4)):
    a = K.exp(log_a)
    lat = SquareLattice(size=size, pbc=True, lattice_constant=a)
    d = lat.distance_matrix
    # More robust distance handling to avoid numerical issues
    d_safe = K.where(
        d > 1e-6, d, K.convert_to_tensor(1e6)
    )  # Large value for self-interactions
    term12 = K.power(sigma / d_safe, 12)
    term6 = K.power(sigma / d_safe, 6)
    e_mat = 4.0 * epsilon * (term12 - term6)
    n = lat.num_sites
    # Zero out diagonal (self-interactions) more explicitly
    mask = 1.0 - K.eye(n, dtype=e_mat.dtype)
    e_mat = e_mat * mask
    total_energy = K.sum(e_mat) / 2.0  # each pair counted twice
    return total_energy


val_and_grad = K.jit(K.value_and_grad(lj_total_energy))
opt = optax.adam(learning_rate=0.02)
log_a = K.convert_to_tensor(K.log(K.convert_to_tensor(1.2)))
state = opt.init(log_a)

hist_a = []
hist_e = []
for it in range(80):
    e, g = val_and_grad(log_a)
    hist_a.append(K.exp(log_a))
    hist_e.append(e)
    upd, state = opt.update(g, state)
    log_a = optax.apply_updates(log_a, upd)
    if (it + 1) % 20 == 0:
        print(f"iter {it+1}: E={float(e):.6f}, a={float(K.exp(log_a)):.6f}")

final_a = K.exp(log_a)
final_e = lj_total_energy(log_a)
print("Final:", f"E={float(final_e):.6f}", f"a={float(final_a):.6f}")

iter 20: E=-20.305588, a=1.116975
iter 40: E=-20.495401, a=1.104924
iter 60: E=-20.516659, a=1.099829
iter 80: E=-20.516122, a=1.100113
Final: E=-20.516308 a=1.100113

[50]:

# Plot energy curve and optimization steps
# sample a-curve (NumPy for speed is fine)
a_grid = np.linspace(0.8, 1.6, 120)


def lj_energy_np(a, epsilon=0.5, sigma=1.0, size=(4, 4)):
    lat = SquareLattice(size=size, pbc=True, lattice_constant=float(a))
    d = lat.distance_matrix
    d = np.asarray(d)
    n = d.shape[0]
    mask = ~np.eye(n, dtype=bool)
    ds = d[mask]
    ds = np.where(ds > 1e-9, ds, 1e-9)
    e = 4 * epsilon * (np.sum((sigma / ds) ** 12 - (sigma / ds) ** 6)) / 2.0
    return float(e)


e_grid = [lj_energy_np(a) for a in a_grid]

# convert hist tensors to floats
hist_a_f = [float(x) for x in hist_a]
hist_e_f = [float(x) for x in hist_e]
fa = float(final_a)
fe = float(final_e)

plt.figure(figsize=(6, 4))
plt.plot(a_grid, e_grid, label="LJ potential")
plt.scatter(hist_a_f, hist_e_f, s=18, color="tab:red", label="opt steps")
plt.scatter([fa], [fe], s=80, color="tab:green", marker="*", label="final")
plt.xlabel("lattice constant a")
plt.ylabel("total energy")
plt.title("Differentiable geometry optimization (4x4 square, PBC)")
plt.legend()
plt.grid(True)
plt.show()
../_images/tutorials_lattice_18_0.png

Summary of differentiable demo¶

  • The lattice constant a was treated as a differentiable parameter via log(a) reparameterization.

  • We computed the Lennard-Jones energy using lattice distances and optimized it with Adam.

  • For a full script and more iterations, see examples/lennard_jones_optimization.py.

Further Reading and Resources¶

API Reference¶

  • Core lattice classes: tensorcircuit/templates/lattice.py - All lattice geometry classes

  • Hamiltonian utilities: tensorcircuit/templates/hamiltonians.py - Physics Hamiltonian builders

Complete Examples¶

Explore these examples in the examples/ directory:

  • ``lennard_jones_optimization.py`` - Full differentiable geometry optimization with JAX/Optax

  • ``lattice_neighbor_benchmark.py`` - Performance comparison for different neighbor-finding algorithms

Test Suite and Validation¶

The test suites showcase rich usage patterns and provide validation:

  • ``tests/test_lattice.py`` - Comprehensive lattice functionality tests

  • ``tests/test_hamiltonians.py`` - Physics Hamiltonian validation against analytical results

Key Features Demonstrated¶

✅ Unified API for both regular and custom geometries
✅ Efficient neighbor finding with configurable interaction shells
✅ Interactive visualization with bonds and site labeling
✅ Physics-ready Hamiltonians from geometric connectivity
✅ Parallel gate scheduling for quantum circuit optimization
✅ Differentiable parameters for variational material design

Performance Tips & Best Practices¶

For Large Systems (N > 1000 sites):¶

  • Use CustomizeLattice with KDTree neighbor building for better scalability

  • Consider sparse representations for distance-dependent interactions

  • Pre-compute neighbors with _build_neighbors(max_k=...) once

Backend Selection:¶

  • JAX: Best for differentiable geometry and automatic differentiation

  • NumPy: Simple and reliable for static lattice analysis

  • TensorFlow/PyTorch: For integration with existing ML pipelines

Memory Efficiency:¶

  • Distance matrices scale as O(N²) - use neighbor lists for very large systems

  • For visualization: use show_bonds_k=0 for large lattices to show only sites

Precision Considerations:¶

  • Use tc.set_dtype("complex128") for high-precision physics calculations

  • Set JAX_ENABLE_X64=True to avoid precision warnings with complex numbers

🎯 Next Steps: Try building your own custom lattice geometry or implementing a new physics Hamiltonian using this framework!

[51]:

# Environment info for reproducibility
print(tc.about())
print(
    "\n🎉 Tutorial completed successfully! You're now ready to use the lattice API in your quantum simulations."
)

OS info: Windows-10-10.0.26100-SP0
Python version: 3.10.5
Numpy version: 1.26.4
Scipy version: 1.15.3
Pandas version: 2.3.0
TensorNetwork version: 0.5.1
Cotengra version: 0.7.5
TensorFlow version: 2.15.1
TensorFlow GPU: []
TensorFlow CUDA infos: {'is_cuda_build': False, 'is_rocm_build': False, 'is_tensorrt_build': False, 'msvcp_dll_names': 'msvcp140.dll,msvcp140_1.dll'}
Jax version: 0.4.34
Jax installation doesn't support GPU
JaxLib version: 0.4.34
PyTorch version: 2.7.1+cpu
PyTorch GPU support: False
PyTorch GPUs: []
Cupy is not installed
Qiskit version: 2.1.1
Cirq version: 1.5.0
TensorCircuit version 1.3.0
None

🎉 Tutorial completed successfully! You're now ready to use the lattice API in your quantum simulations.
